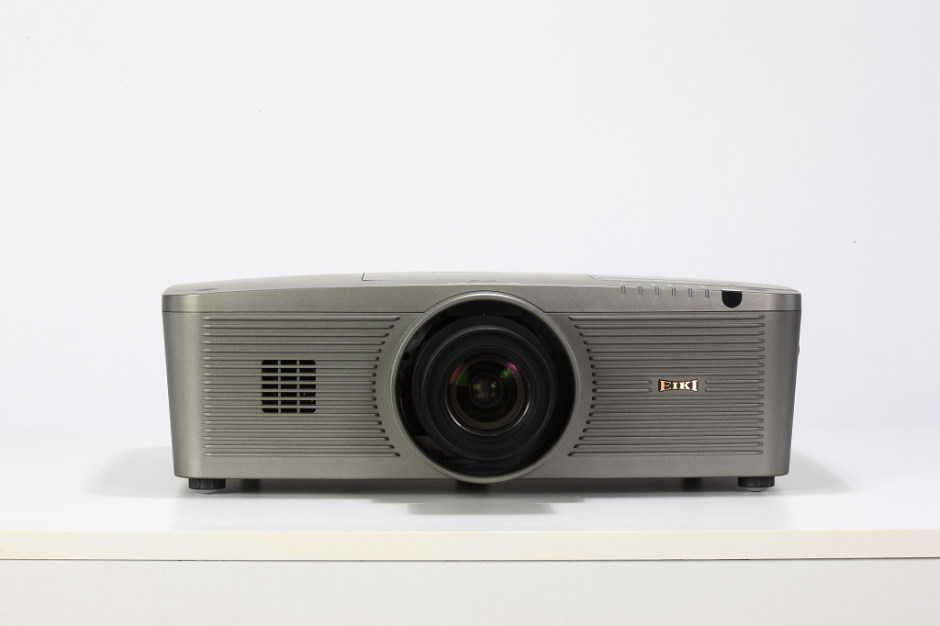

LC-XL200A
LC-XL200AL (no lens)

Outstanding Features

Combining large venue projection features with durable components and reduced maintenance, here’s a projector that delivers big screen performance on a budget. The EIKI LC-XL200A comes complete with a wide-range power zoom and focus lens as standard equipment.

LC-XL200A Key Features

  • 6,000 ANSI Lumens bright, with 90% uniformity and a 2000:1 contrast ratio.
  • Native XGA resolution. Compatible with inputs up-to UXGA and WUXGA.
  • Supports analog and digital video input in all color standards up-to 1080p.
  • Durable inorganic 3-panel LCD imaging engine with a high contrast ratio.
  • 10-bit color processing, for superior color reproduction.
  • Power zoom and focus lens. Optional wide-angle and telephoto lenses.
  • Vertical and Horizontal power lens shift and digital keystone correction.
  • Includes a full set of analog and digital computer and video inputs.
  • Built-in 7 Watt amplifier and speaker system. Closed Caption decoding.
  • Wired LAN connection for monitoring and control. Optional PjNET interface.
  • Self-advancing cartridge air filter provides up-to 13,000 hours use.
  • Centered lens with 1-button release. Top-accessed lamp, side-accessed filter.
  • Mechanical shutter for true black screen. Corner keystone correction.
  • Wireless/wired remote with mouse control.
  • 3 year/6000 hrs. (whichever comes first) projector warranty.

Included Accessories: Quick Start Guide, Owner's Manual on CD-ROM, VGA Computer Input Cable (Dsub15 to Dsub15), 10 ft (3 m) Detachable Power Cord, Wireless Remote Control (with 2 AAA Batteries), Network Software on CD-ROM, Lens Cover, USB Cable for Computer Mouse Control.

Optional Accessories: Replacement Lamp, Wideangle, Midrange and Telephoto Lenses, ATA-Style Shipping Case with Wheel and Telescoping Handle, PjNet Network Interface, Ceiling Mount, Ceiling Post and Plate.

Specifications Overview

Display Technology 3LCD
Brightness (ANSI) 6,000 ANSI lumens
Native Resolution XGA (1024x768)
Max. Computer Input WUXGA
Max. Video Input 1080p
Contrast Ratio 2000:1
Panel Size 0.8" (inorganic)
Lens Type (Throw:Width) 1.70-2.89:1
Power Lens Shift U/D 50%; L/R 10%
Keystone Correction U/D 40°; L/R 20°
Inputs Dsub15 x 1; DVI-D (w/HDCP) x 1; BNC x 5; S-Video x 1; RCAx3; RCA x 1; MiniStereo x 2; RCA (audio) x 2
Outputs Dsub15 x 1; MiniStereo x 1
Sound System 7 Watt; 1.46" speaker x 1
Network Control Wired LAN monitor & control and system management with optional module
Warranty 3 year/6000 hrs. (whichever comes first) projector warranty.
Lamp Life Up to 3,000 hours
Lamp Part # 610 346 9607
Fan Noise As low as 31 dBA
Air Filter Cartridge (13,000 hours)
Maximum Pitch Up to 360°
Weight 22.3 lb (9.7 kg)
Ceiling Mount Part # 0173-4343

Name Description File Size Type

pdf LC-XL200 cad drawing

900.17 KB

pdf

pdf LC-XL200A color data sheet

0.00 KB

pdf

pdf LC-XL200A owners manual

13.74 MB

pdf

pdf LC-XL200A RS-232 Serial Basic Commands

258.23 KB

pdf

pdf LC-XL200A RS-232 Serial Expand Commands

414.59 KB

pdf

pdf LC-XL200A specifications

55.20 KB

pdf
