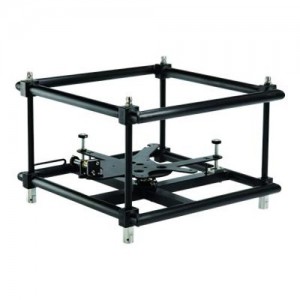

3175-5039 Rigging/Stacking Frame

Deluxe Projector Rigging/Stacking Frame with 5 axis adjustment

3175 5039

3175 5039

Part Number Models Description List Price
3175-5039

EIP-UJT100
EIP-UHS100
EK-800U

  • Stacking mechanism with safety pin at 4 top corners.
  • Design for 2 unit stacking capability.
  • Fixed, clearance at service points
  • 5 axis adjustment capability. Side to side; Elevation; Pitch; Roll; and Yaw.
  • Black Powder Coat
  • Outer Dimensions: 38-1/16" x 31-5/16" x 20-7/16" (967mm L x 795mm W x 519mm H)
  • Each unit shipped blanket wrapped and strapped to a pallet
  • Combined (Frame and Pallet) Weight = 162 lbs.
  • Now Includes Free Surface Freight*.

* Surface Freight paid (Eiki choice of carrier only)  within the contiguous 48 continental states (Alaska, Hawaii and Puerto Rico not included)

No Longer Available
